Stand Alone Machine Vision System

Smart Camera Scanner

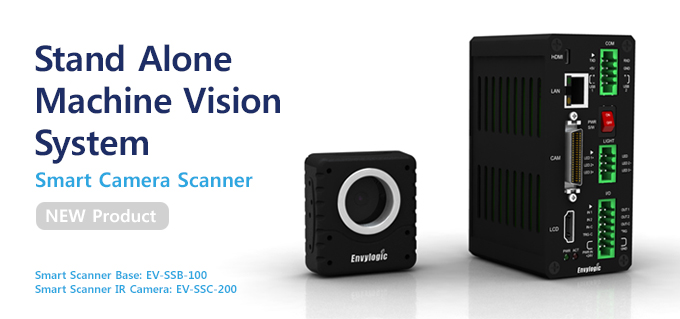

Smart Scanner Base: EV-SSB-100

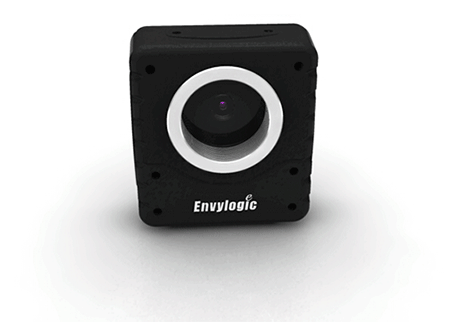

Smart Scanner IR Camera: EV-SSC-200





Features



• Integrated with powerful processor, high resolution CMOS IR camera
• Easy custom programming by android APP
• All the set up work is possible by touch monitor (Optional)
• 1D/2D symbol decoding, optical character recognition (OCR)
• Integrated lighting control included strobe light
• Flat/Ring LED light can be attachable
• Selectable 1M~12M camera resolution
• Ethernet TCP/IP, RS-232 interface
• Compact and durable housing







Model Overview

   Smart Scanner Base : EV-SSB-100





   Smart Scanner IR Camera : EV-SSC-200









Software










Stand Alone Machine Vision System

Smart Camera Scanner





Specification





 Model

 Smart Scanner IR Camera (EV-SSC-200)

 Sensor

 Image format

 1/3.06” 13M CMOS Color image sensor, IMX091

 Active pixels 4208(H) × 3120(V)
 Sensitivity 264mV / lux · sec
 Frame rate 5fps (12M), 50fps (1M)

 Lens

 Focal length

 4.04 mm

 F number 2.4
 Optical length(TTL) 5.2 mm
 Angular field of view   71.7°

 Interface

 MIPI 4-Lane

 Minimum object destance

 10mm ~ ∞ @ AF

 Lens Mounte C-Mount
 Dimension 51.5mm(W) x 57mm(L) x 19mm(H)







 Model

 Smart Scanner Base (EV-SSB-100)

 Interface

 10/100MBPS Ethernet , RS-232

 I/O

 1 trigger input, 2 input, 2 output, 2 USB host

 Monitor (Option)  7.0 inch capacitive touch screen , TFT, 1024x600
 Support HDMI monitor
 Lighting Included 3CH LED lighting control
 Power 24V, 150mA
 Camera inferface MIPI-CSI 4-Lane
 Dimension 50mm(W) x 113.1mm(L) x 79.8mm(H)







Stand Alone Machine Vision System

Smart Camera Scanner





Dimensions

Unit: mm








Stand Alone Machine Vision System

Smart Camera Scanner





Accessories













Smart Scanner IR Camera

 Smart Scanner Base

             Terminal Block 12




   Camera Cable

     24V Adaptor (Optional)

     LCD HDMI Cable (Optional)



       7 Inch TFT LCD Monitor


      (Optional)
